Nylon Units HVAC Automatic Disc Filter Self Cleaning 50 Micron 4000-20um

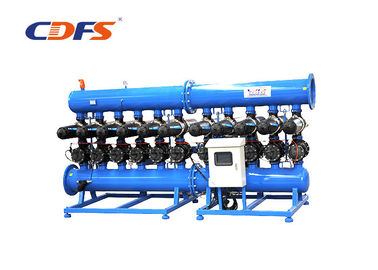

Large Image : Nylon Units HVAC Automatic Disc Filter Self Cleaning 50 Micron 4000-20um

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	CDFS
Certification:	ISO90001,CE
Model Number:	DLLF

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	10-15Days
Payment Terms:	L/C, T/T,
Supply Ability:	2600SET/YEAR

Contact Now

Detailed Product Description

Product Name:	Automatic Disc Filter	Material:	Plastic
Advantage:	Self Cleaning	Capacity:	20-2000m3/h
Application:	Industry	Color:	Black/blue
Pressure:	2-10bar	Precision:	4000-20um
Pressure Gage Material:	Stainless Steel	Water In/out:	2 Inch
High Light:	disc water filter , agriculture water filter

50 mircon nylon units HVAC filter disc filter

Automatic Disc Filter Introduction

Automatic Disc Filter adopts modular design and can be used in various combinations according to the filter unit. A backwash controller can control one or more filters to meet the actual needs of different applications. Automatic Disc Filter has a wide selection of system materials, all plastic system has excellent chemical resistance, acid, alkali, salt and solvent resistance. Due to the releasing of discs in the backwash and the centrifugal injection, the cleaning effect cannot be achieved by other filters. The backwash time for each filter unit can be completed in 10 to 20 seconds. The backwash controller is simple to operate and the filter can be fully controlled according to pressure difference, time or combination. The filtration element don’t need to exchange, service life is up to 15 years.

Automatic Disc Filter Function:

The use of laminated filter to effectively treat organic and inorganic impurities in water.

Automatic Disc Filter application:
Textile, metallurgy, plastics, medicine, building materials, paper, industrial and commercial buildings, HVAC systems, irrigation, wastewater treatment, sewage recycling, municipal water supply, water plants, large power plants, chemical companies And emergency response filtering and other fields

Automatic Disc Filter Parameters tems

Items	Materials
Disc filter modules	Nylon
Pipeline	Carbon steel/HDPE /Stainless steel
Pressure gage	Stainless steel
Auto backwash valve	Nylon/stainless steel
Electromagnetic valve	Brass/nylon
Air valve	Plastic
Controller cover	Plastic/Stainless steel

Product structure

BACKWASH

Automatic Disc Filter Parameters

Raw water quality	Good water quality			General water quality			Poor water quality			The worst quality
Filtration range	200μm	100μm	50μm	200μm	100μm	50μm	200μm	100μm	50μm	200μm	100μm	50μm

Models	Flow(m3/h)			Flow(m3/h)			Flow(m3/h)			Flow(m3/h)
DLLF-2-2	≤38	≤30	≤22	≤29	≤22	≤18	≤21	≤15	≤13	≤13	≤10	≤8
DLLF-2-3	57	45	33	43	33	26	31	22	18	18	14	10
DLLF-2-4	76	60	44	57	44	35	41	30	24	25	19	14
DLLF-2-5	95	75	55	72	55	44	51	37	30	31	23	17
