Drip 3" Automatic Disc Filter 120 Mesh For Ro Water Purifier 220V/50Hz

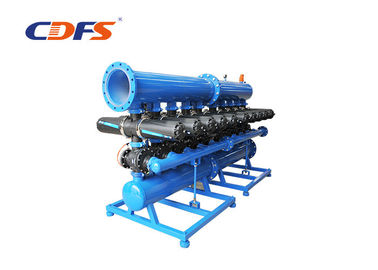

Large Image : Drip 3" Automatic Disc Filter 120 Mesh For Ro Water Purifier 220V/50Hz

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	CDFS
Certification:	ISO90001,CE
Model Number:	DLLF

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	10-15Days
Payment Terms:	L/C, T/T,
Supply Ability:	2600SET/YEAR

Contact Now

Detailed Product Description

Pipe Material:	Plastic /Carbon Steel/Stainless Steel	Capacity:	20-2000m3/h
Application:	Ro Water Purifier	Color:	Black/blue
Pressure:	2-10bar	Temperature:	85℃
Disc Filter Modules Material:	Nylon	Pressure Gage Material:	Stainless Steel
Power:	220V/50Hz
High Light:	irrigation screen water filters , agriculture water filter

Drip 3" Automatic Disc Filter 120 Mesh For Ro Water Purifier 220V/50Hz

Automatic Disc Filter Features:

Precise filtration: Filter discs with different precision can be selected according to water requirements. There are various specifications such as 20 micron, 55 micron, 100 micron, 130 micron, 200 micron, and 400 micron, and the filtration ratio is greater than 95%.

Automatic Disc Filter Description

Application:Ro Water Purifier
Working pressure: 2-10 bar
Working temperature:<85℃
Power:220V/50Hz
Flow: 50m3/h
Water in/out: 2 inch
Housing color:green/blue
Dimension:900*820*1150mm
Net Weight: 52KG Gross weight:96KG

Automatic Disc Filter Parameters

Items	Materials
Disc filter modules	Nylon
Pipeline	Carbon steel/HDPE /Stainless steel
Pressure gage	Stainless steel
Auto backwash valve	Nylon/stainless steel
Electromagnetic valve	Brass/nylon
Air valve	Plastic
Controller cover	Plastic/Stainless steel

Design and selection of models
1. Water quality classification

A.: Water of good quality: city tap water, well water from stable aquifer.

B.: Water of general quality: cooled circulating water, surface water treated by sedimentation, and drained water treated by effective deposition and completely biological treatment.

C.: Water of relatively poor quality: groundwater from aquifer of poor quality, drained water treated by effective deposition but with poor biological treatment, and surface water with enormous microbes.

D. The worst quality: well water with rich iron and manganese elements, surface water affected by flooding and without sedimentation, and drained water without precipitation and biological treatment.

Different water qualities have different influences on the filter's operation period, so in general it is better to keep the system's backwash intervals no less than 1 hour.

Raw water quality	Good water quality			General water quality			Poor water quality			The worst quality
Filtration range	200μm	100μm	50μm	200μm	100μm	50μm	200μm	100μm	50μm	200μm	100μm	50μm

Models	Flow(m3/h)			Flow(m3/h)			Flow(m3/h)			Flow(m3/h)
DLLF-2-2	≤38	≤30	≤22	≤29	≤22	≤18	≤21	≤15	≤13	≤13	≤10	≤8
DLLF-2-3	57	45	33	43	33	26	31	22	18	18	14	10
DLLF-2-4	76	60	44	57	44	35	41	30	24	25	19	14
DLLF-2-5	95	75	55	72	55	44	51	37	30	31	23	17
