Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use

Certification
China HUNAN DAWNING FILTER SYSTEM TECHNOLOGY CO.,LTD certification
China HUNAN DAWNING FILTER SYSTEM TECHNOLOGY CO.,LTD certification
I have already started using this Automatic Self Cleaning Filter, it is very easy to use, I am also going to purchase a few other water filters from you, the quality is very good.

—— Ceyhan

A very good company with good Irrigation Sand Filter and good service ! I have been working with them for many times ,and will continue to working.

—— Peter

I'm Online Chat Now

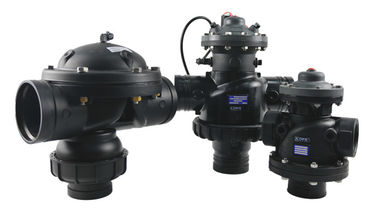

Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use

Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use
Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use

Large Image :  Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use

Product Details:

Place of Origin: China
Brand Name: CDFS
Certification: ISO9001&CE
Model Number: 3 inch

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T,
Detailed Product Description
Material: Plastic/metal Size: 3 Inch
Usage: Automatic Filter Color: Black
Pressure: 2-8bar Media: Water
Structure: Control Feature: Easy To Use
High Light:

automatic backwash valve

,

filter multiport valve

This valve is widely used in automatic backwash disc filtration system, driven by the pressure of pipelines and realize filters backwash automatically. It is simple-structured, practical, and can run for a long time without maintenance. The diaphragm can change the direction of stream quickly and stably. When backwash inlet is open, the water inlet is closed, or vice versa. It can avoid overflow of filter or mixing of clean water and waste water.



Filtration Model

The upper chamber decompresses by releasing the water or air source pressure. the fluid pressure inside the valve expands the diaphragm upword ,closing port A and allowing port B to flow out of port C.

Backwash Model

The upper chamber increasdes by adding source air or water pressure. The diaphragm will move down to close port B, and open port A. This will allow water to flow back through the valve from port C and exit through.



Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use 0



Multi Port Water Filter Backwash Valve Plastic / Metal Material Easy To Use 1



Our Services

1. Our company provides maintenance for 1 year after delivery.

2. Alfter the goods are delivered, our company will track the products.

3. In addition to the after-sales service during the warranty period, the company is also

responsible for equipment maintenance after the warranty period.
