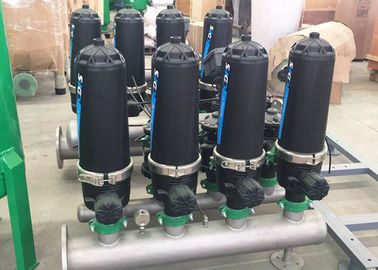

Adjustable Cleaning Time Automatic Water Filter For Irrigation System

Adjustable Cleaning Time Automatic Water Filter For Irrigation System
Adjustable Cleaning Time Automatic Water Filter For Irrigation System

Large Image :  Adjustable Cleaning Time Automatic Water Filter For Irrigation System

Product Details:

Place of Origin: China
Brand Name: CDFS
Certification: ISO&9001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T,
Supply Ability: 2600 sets per year
Detailed Product Description
Housing: Carbon Steel/stainless Steel Screen: SS304/316L
Flow: 19-4000m3/h Working Pressure(max.): 16bar
Working Pressure(min): 1bar Working Temperature: 65℃
Power: 380/410/450V Or Other Cleaning Way: Brush
Filtration: 20-4000 Micron Control Way: Differential Presure/time
Application 1: Commercial Application 2: Industrial
Application 3: Irrigation Application 4: HVAC
Application 5: Metal Processing Plants Application 6: Mining
Highlight:

commercial water filter

,

water filtration filters

Adjustable Cleaning Time Automatic Water Filter For Irrigation System



Application

Commercial - Golf course and sporting field irrigation systems.
Industrial - Pre-preteatment of UF/RO and waste water recycling.
Irrigation - Primary filtration for the prevention of blockages in irrigation system
HVAC- cooling tower side filtration and full system
Metal Processing Plants - Filtration for water cooling and spray nozzles.
Mining - Cleaning of process and waste water.



Product structure

Adjustable Cleaning Time Automatic Water Filter For Irrigation System 0

Product principle

The water flows through the screen and the particles are retained on the inside of the screen of the filter element.

The filtered water then flows out through the outlet.
When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level,

the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet.

Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.
Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.


Technical parameters

■A single maximum flow capacity is up to 4000m3 / h
■Wide filtration range:screens from 4000 to 20 microns
■Working pressure(min)≥0.18Mpa
■Working pressure(max)≤1.6MPa(customized is available)
■Working temperature ≤65℃
■Power supply: 380 v / 50 Hz (Customized is availabel)
■Cleaning method: brush type
■Adjustable cleaning time: 10-200 seconds


Filter material

■Shell: carbon steel, 304 stainless steel, 316L stainless steel
■Screen: 304 stainless steel, 316L stainless steel
■Brush holder: 304 stainless steel, 316L stainless steel
■Drain valve, cast iron,copper,stainless steel,PVC,nylon
■Controller: PVC, aluminum
■Seal ring: EPDM rubber
■Cleaning brush: stainless steel, nylon



DLD-FY series self-cleaning filter specification table

Model
Water in/outlet
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Power
(KW)
Max flow
(m3/h)
Weight
(Kg)
DLD-FY-50
50
870
545
690
420
0.12
19
50
DLD-FY-65
65
870
545
690
420
0.12
30
70
DLD-FY-80
80
870
545
690
420
0.12
50
80
DLD-FY-100
100
1270
860
690
420
0.18
80
105
DLD-FY-150
150
1365
980
750
420
0.18
150
160
DLD-FY-200
200
1670
1175
850
518
0.25
320
225
DLD-FY-250
250
1732
1236
1030
620
0.25
490
260
DLD-FY-300
300
2268
1573
1380
680
0.37
710
395
