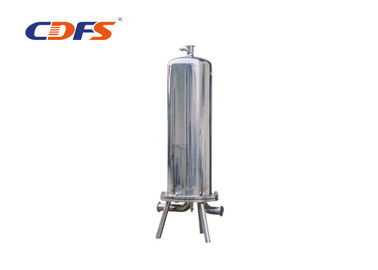

SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter

Certification
China HUNAN DAWNING FILTER SYSTEM TECHNOLOGY CO.,LTD certification
China HUNAN DAWNING FILTER SYSTEM TECHNOLOGY CO.,LTD certification
I have already started using this Automatic Self Cleaning Filter, it is very easy to use, I am also going to purchase a few other water filters from you, the quality is very good.

—— Ceyhan

A very good company with good Irrigation Sand Filter and good service ! I have been working with them for many times ,and will continue to working.

—— Peter

I'm Online Chat Now

SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter

SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter
SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter

Large Image :  SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter

Product Details:

Place of Origin: China
Brand Name: CDFS
Certification: ISO9001&CE
Model Number: DLJM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Detailed Product Description
Housing: Stainless Steel Filration Precision: 5 /10 Micron
Flow: 0.2-130m3/h Keyword: Precision Filter
Application: Water Filter Color: Silver
High Light:

industrial water filter

,

high pressure filter

Stainless steel housing cartridge precision filter 5 micron



one-time investment is low: no need to set up a separate coagulation tank, clarification tank and other facilities, no need for backwashing pumps and electric, pneumatic valves and other equipment, small amount of engineering, one-time investment.



Water Filter have been designed for high purity and critical applications. single cartridge sanitary housings are available in T-style or Inline configurations and offered in lengths from 5 through 40 inches. multi cartridge sanitary housings, available in 3,6,8,12 and 21 round models with swing bolt closures that are a proven design suited for high purity beverage, chemical and pharmaceutical applications. All are manufactured in 316L Stainless Steel with a 25 RA internal finish.

housings are standard with DOE.222-226 style cartridge adaptors giving you a positive locking tab seal. This allows flexibility in one housing to use different cartridge lengths and maximize filter performance and cost.

Please select the model below for detailed specifications and drawings.



SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter  0SS Cartridge Water Precision Filter , 5 / 10 Micron Vertical Pressure Filter  1

Standard Features:

  • Food Grade Silicone Gaskets
  • No internal threaded parts that come in contact with the process fluid
  • 222,DOE -226 style cartridges adaptors
  • 1/2" sanitary vent and drain ports with clamp and blank plates
  • All multi round housings have a removable tube sheet so that all surfaces are cleanable.

Design and selection of models
1. Water quality classification

A.: Water of good quality: city tap water, well water from stable aquifer.

B.: Water of general quality: cooled circulating water, surface water treated by sedimentation, and drained water treated by effective deposition and completely biological treatment.

C.: Water of relatively poor quality: groundwater from aquifer of poor quality, drained water treated by effective deposition but with poor biological treatment, and surface water with enormous microbes.

D. The worst quality: well water with rich iron and manganese elements, surface water affected by flooding and without sedimentation, and drained water without precipitation and biological treatment.

Different water qualities have different influences on the filter's operation period, so in general it is better to keep the system's backwash intervals no less than 1 hour.



Our Services

1. Our company provides maintenance for 1 year after delivery.

2. Alfter the goods are delivered, our company will track the products.

3. In addition to the after-sales service during the warranty period, the company is also

responsible for equipment maintenance after the warranty period.
