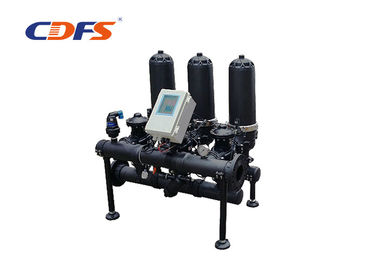

Low Pressure Automatic Disc Filter For Workshop Water Irrigation 2-10 Bar

Low Pressure Automatic Disc Filter For Workshop Water Irrigation 2-10 Bar
Low Pressure Automatic Disc Filter For Workshop Water Irrigation 2-10 Bar

Large Image :  Low Pressure Automatic Disc Filter For Workshop Water Irrigation 2-10 Bar

Product Details:

Place of Origin: China(Mainland)
Brand Name: CDFS
Certification: ISO90001,CE
Model Number: DLLF

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 10-15Days
Payment Terms: L/C, T/T,
Supply Ability: 2600SET/YEAR
Detailed Product Description
Product Name: Automatic Disc Filter Material: Plastic
Pipe Material: Stainless Steel Capacity: 20-2000m3/h
Application: Workshop Water Irrigation Pressure: 2-10bar
Precision: 4000-20um Temperature: 85℃
Disc Filter Modules Material: Nylon Pressure Gage Material: Stainless Steel
High Light:

disc water filter

,

agriculture water filter

Low Pressure Automatic Disc Filter For Workshop Water Irrigation 2-10 Bar




Automatic Disc Filter Feature



1. automatic and self -cleaning filtration equipment.

2. mininum water consumption and maintenance costs .

3. maximum reliability and efficiency in filtration.

4. manifolds made rither in high densty polyethylene,epoxy coated steel or satinless steel.

5. compatible with different control units,achieving easy and complete communication with the user.

6. Great safety ,due to the independance of the hydraulic system from the dlectric one.

Automatic Disc Filter Specification of DLLF-2-2

  • Application:Workshop Water Irrigation
  • Working pressure: 2-10 bar
  • Working temperature:<85℃
  • Power:220V/50Hz
  • Flow: 50m3/h
  • Housing color:green/blue
  • Dimension:900*820*1150mm
  • Net Weight: 52KG    Gross weight:96KG

Automatic Disc Filter structure

BACKWASH

Automatic Disc Filter Parameters



Raw water quality

Good water quality

General water quality

Poor water quality

The worst quality

Filtration range

200μm

100μm

50μm

200μm

100μm

50μm

200μm

100μm

50μm

200μm

100μm

50μm



























Models

Flow(m3/h)

Flow(m3/h)

Flow(m3/h)

Flow(m3/h)

DLLF-2-2

≤38

≤30

≤22

≤29

≤22

≤18

≤21

≤15

≤13

≤13

≤10

≤8

DLLF-2-3

57

45

33

43

33

26

31

22

18

18

14

10

DLLF-2-4

76

60

44

57

44

35

41

30

24

25

19

14

DLLF-2-5

95

75

55

72

55

44

51

37

30

31

23

17
















Packaging & Shipping

 wooden case





Company Information

In 2002: Dawning Environmental Protection Technology Co., Ltd. was founded , which is a emerging technology company specialized in environmental water treatment.The main products include water filtration, water descaling antiscale,water heating for industrial and irrigation.
In 2010: The first patent awarded.
In 2014: We builded our own factory covering an area of 13000 square which is domestic largest water filter production base.
In 2015: Hunan Dawning Filter System Tech. CO., Ltd(CDFS) founded as subsidinary for foreign trade.
In 2016: Quotation System available
In 2017.1: Intergrated filtration system testing platform builded.
In 2017.3: Introducing automatic surface treatment equipment
In 2017.8. Expanding factory area to short lead time for customers.

In 2018.7. Building automatic production line(welding,coating)for sand filter
More developing......
